Model # 7030-11 Two Component Epoxy Adhesive Dispenser

Meritool PowerPush 7030-11 600ml 300x300 1:1 Two Component Dispenser

Technical Specifi cations:

  • Capacity: 22oz
  • Ratio: 1:1 (300x300ml)
  • Weight: 8.4 lbs (3.8 kg)

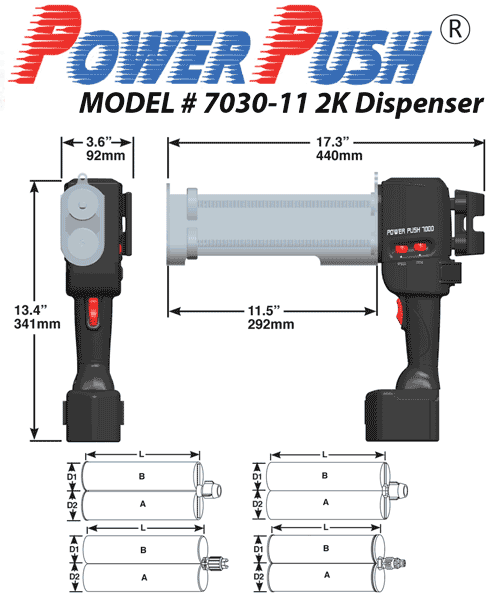

  • Dimensions: 17.3 x 3.6 x 13.4” (440 x 92 x 341mm)
  • Thrust: Factory set up to 1,800 lbs (8kN)
  • Speed: Variable up to 6”/min (2.5mm/sec)
  • Battery: 14.4V NiCd or 14.4V NiMH
  • Charger: One hour quick charge 110V (240V model available)
  • Battery Capacity: Up to 30 cartridge sets (material dependent)
  • Dosing Limits: Variable from 3 to 32 seconds
  • Top load cartridge holder


  • Cartridge Compatibility:

  • Nominal Size: 600ml
  • L Dimension: 215mm
  • A Capacity: 300ml
  • B Capacity: 300ml
  • Ratio: 1:1
  • D1 Dimension: 51mm
  • D2 Dimension: 51mm
  • Strap Hook
